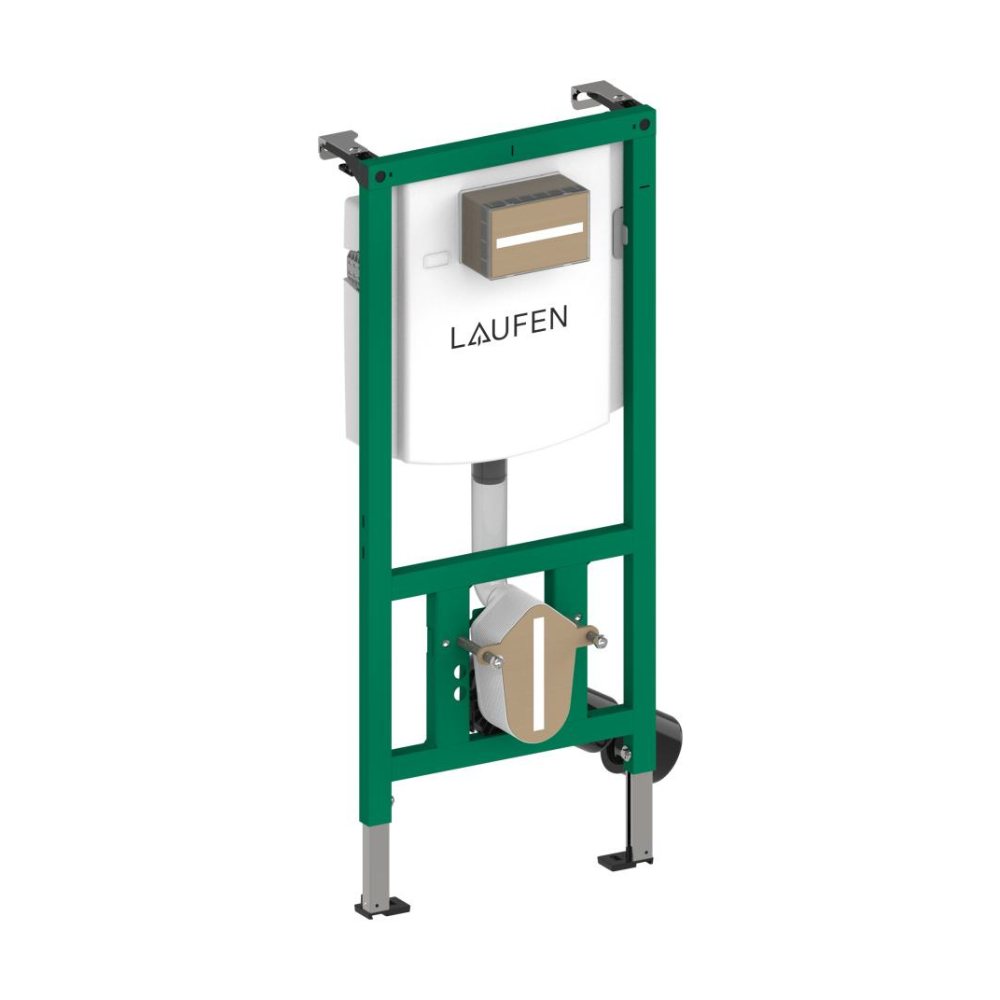

IneoLink Half Frame Concealed Tank Without Flush Plate

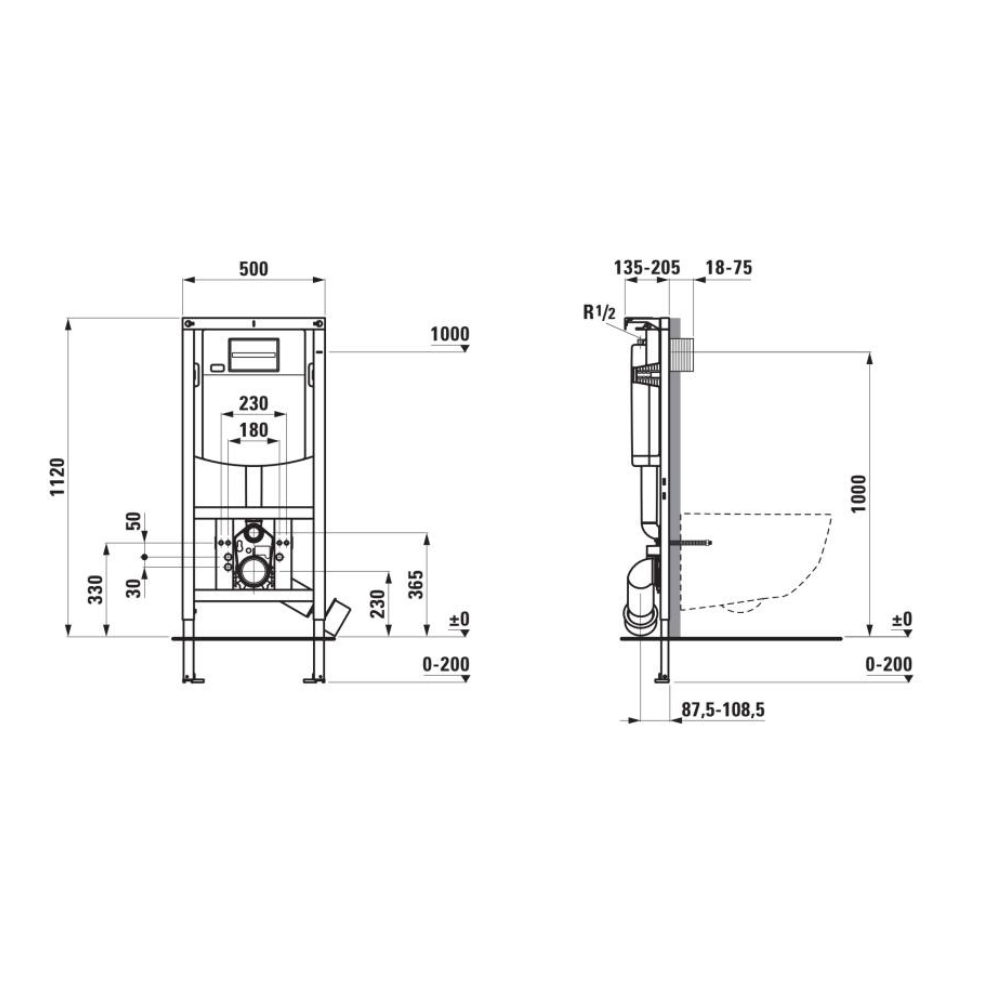

This LAUFEN INEOLINK concealed cistern (H9201140000001) packs a dual-flush system (4.5/3 L, 4/2 L, or 6/3 L) into a compact 500 × 135 × 1120 mm frame for wall-hung WCs, sleek, efficient, and easy to install. It delivers a modest average water use of around 3.38 L per flush and weighs just 12.67 kg. Designed for front-panel operation, it fits seamlessly into modern bathrooms with minimal visual impact

Average water consumption (L.): 3.38
MDMStatus: z0
Net weight (kg): 12.67
Operating panel position: Frontal
Option: standard option
Suitable for: Wall-hung WC

Flushing type:
Dual flush 4.5/3 litres
Dual flush 4/2 litres
Dual flush 6/3 litres
