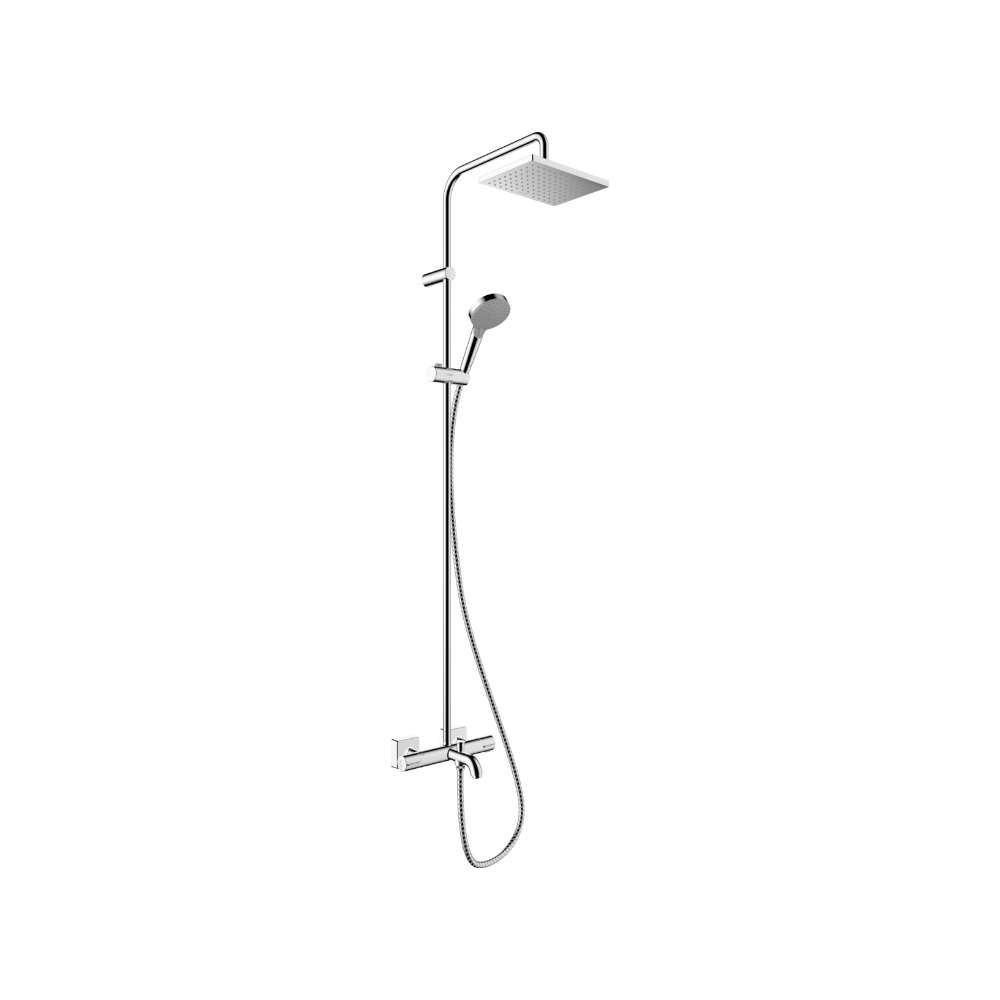

Vernis Shape Showerpipe with Spout

Consists of: Overhead shower, Hand shower, Bath thermostat, Shower hose, slider

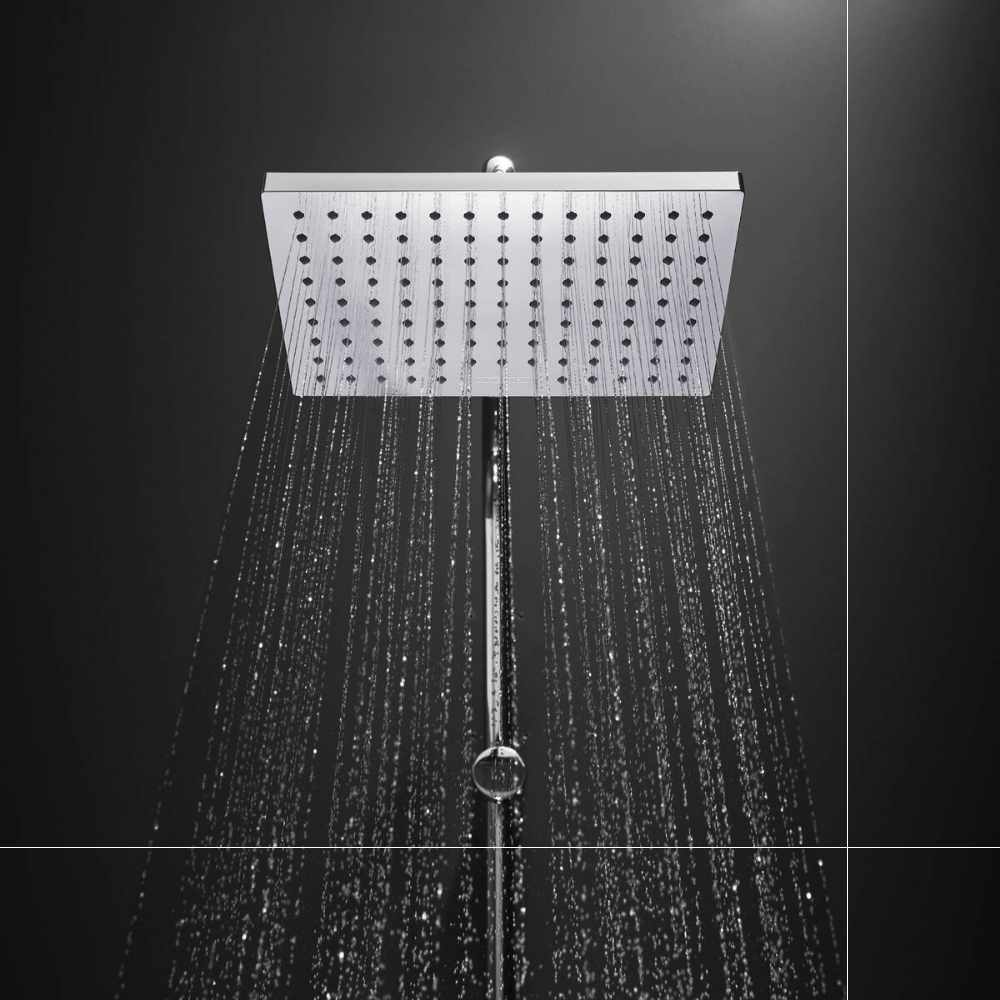

Overhead shower vernis shape 230 1jet
Overhead shower: 230 x 170 mm
Overhead shower spray type: Rain
Ball-joint: Overhead shower angle adjustable
Hand shower spray type: Rain, IntenseRain
Maximum flow rate at 3 bar: 20 l/min
Minimum flow pressure: 1 bar
Operating pressure: min. 1 bar/max. 10 bar
Shower bar diameter: 19 mm
Height-adjustable slider with locking push-button slider
Shower arm length overhead shower: 426 mm
Thermostat vernis
Safety lock at 40° c
Adjustable hot water limitation
Mounting type: exposed installation
Connection dimension DN15
Connection thread G ½
Centre distance 150 ± 12 mm
